Vertical & Horizontal Column Radiator
This timeless design is used widely for both modern and period style applications. Coupled with the vast array of sizes and fixings available, the Modus is one of the most versatile radiators on the market.
The Modus range is available in:
Five column depths, four available fixings, 1/2″ or 3/4″ tappings with various flow configurations
and any RAL colour or finishes. Standard comes with 1/2″ bottom opposite end connections and finished in RAL 9016 (White). All preferences must be specified at time of order – diverter, plug, vent, wall ties and wall brackets are included in the price. Each Modus section regardless of column size is 46mm wide.
Specifying your Modus Radiator:
1 Choose column depth.
2 Choose height (H).
3 Calculate number of sections – to do this, take the Btu output of chosen section and height from spec table then divide your required output by this number.

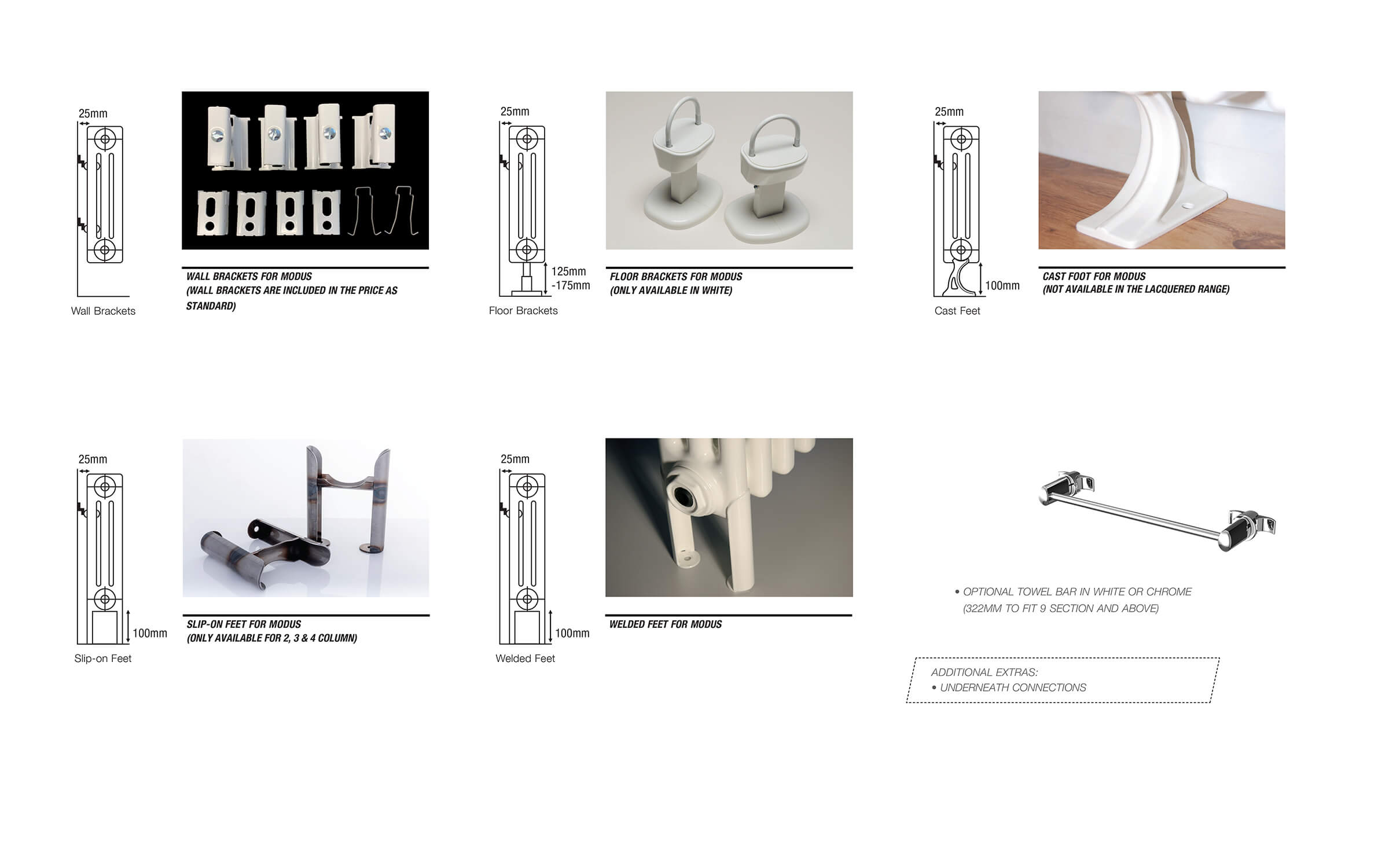

4 Choose fixings.
5 Specify if different from standard 1/2″ bottom opposite end connections in RAL 9016 (white)
For example: you require a Modus with an output of 6000 Btu to heat your room
1 You have chosen your column depth of 4 columns.
2 Chosen your height of 500mm.
3 Calculated your required number of sections (4.500 = 247 Btu, 6000 / 247 = 25 sections).
4 Decided on wall brackets.
5 With 1/2″ bottom opposite end connections as standard in RAL 9016 (white).
To meet your requirements you would need to order:
Modus 4.500 x 25 sections in RAL 9016 (white) with wall brackets 1/2″ bottom opposite end connections. Output will be 6175 Btu (25 sections x 247 Btu)
Length will be 1174mm (25 sections x 46mm per section + 24mm for reducing bushes).
Please Note – For technical reasons paint colours may not match exactly to the samples shown and should be used for illustrative purposes only.
